Bateriový modul 5.12kWh s BMS Heckman WLFP51100A
Kód: 189
Kvalitné produkty
Podrobný popis
Heckman WLFP51100A (5,12 kWh)
LiFePO4 bateria s integrovanou jednotkou BMS, nástenná, výkon: 5,12 kWh
Technické dáta:
- 5,12 kWh - nejvyššia kapacita v tejto triede
- batérie je možné spájať do väčších celkov
- 51 V - napätie
- LiFePO4 - Iron Phosphate Cells pre zlepšenie životnosti a bezpečnosti
- životnost 6000 cyklov
- 10 ročná záruka
- závesné držiaky alebo možnosť postavenia

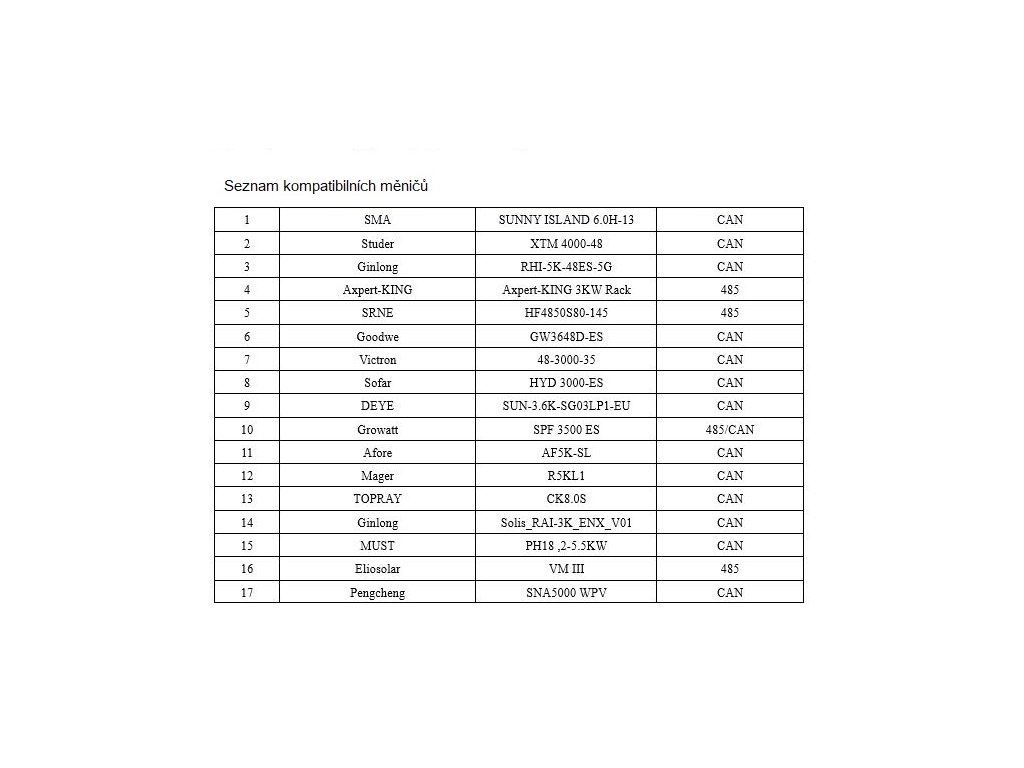

- kompatibilita - spolupracuve s väčšinou striedačov na trhu (vid tabulka)
WLFP51100A
|
BRAND / MODEL
|
HECKMAN / WLFP51100A
|
|---|---|
|
Nominal Voltage
|
51V
|
|
Cell Capacity
|
100Ah / 2x50Ah
|
|
No. of cells
|
16S
|
|
Nominal capacity
|
5120Wh / 5,12kWh
|
|
Usable capacity
|
4860Wh / 4,86Wh
|
|
Size WxLxH
|
460x170x740mm
|
|
Weight
|
54.0kg
|
|
Working temperature
|
-15°C - 60°C
|
|
Charging temperature
|
0°C - 55°C
|
|
Discharging current
|
≤100A (1C)
|
|
Charging current max.
|
≤100A (1C)
|
|
Charging current recommended
|
30A (0.3C)
|
|
Humidity
|
≤90% (40°C ± 2°C)
|
|
Noise
|
0dB
|
|
Discharging current protection
|
105A alarm, 110A shutdown
|
|
Charging current protection
|
100A alarm, 110A shutdown
|
|
Multiple unit connection
|
Parallel
|
|
Communication
|
CAN / RS485
|
|
State of charge indicator
|
LED
|
|
Turn On/Off switch
|
Yes
|
|
Run / Alarm indicator
|
LED
|
|
Address setting
|
DIP switch
|
|
LCD Display
|
Yes
|
|
Warranty
|
10 years
|
